Nohau 80C51XA Series In-Circuit Emulators and Accessories for NXP - Philips P51XAC3, P51XAG3, P51XAG49, P51XAS3, P51XASCC, P51XAH3 P51XAH4

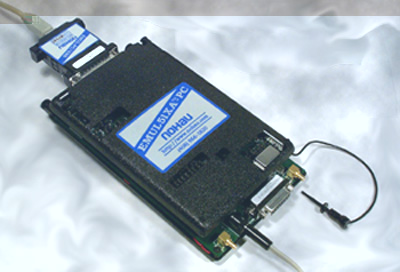

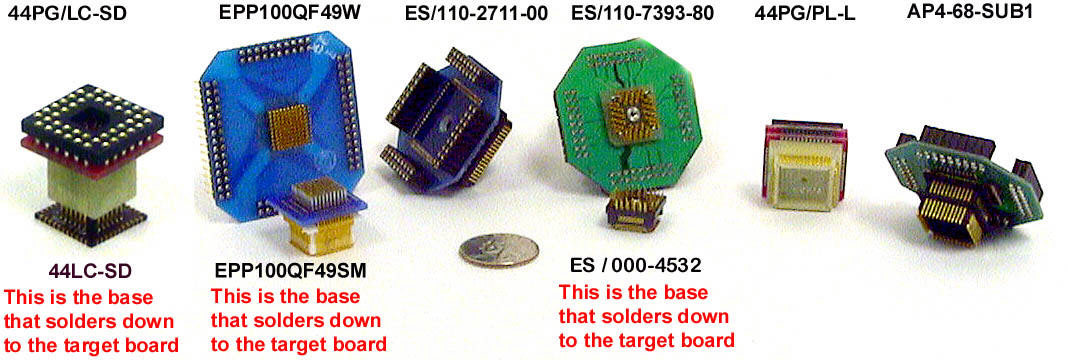

Emulator pod, one required In-circuit pod, one required In-circuit pod to PC interface, one required Real-time code trace, time saving option Pod to target adapters may be required

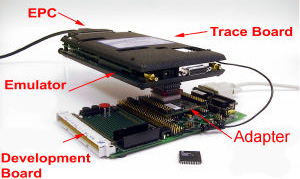

A complete emulator consists of an In-Circuit Emulator Pod, and an optional triggered trace memory card and target socket adapter.
Or, we would be happy to configure an emulator for your project.  Email your target processor part number & clock speed



Part Number P51XA Emulator Pod- Required - Top Price Shopping Cart
POD-51XAC3-256/IE-30 30-MHz pod for the P51XAC3 with 256K emulation RAM. The emulation RAM can be configured as half code, half data or all code. 16 bit data bus width mode only. Includes the Seehau Debug Environment $2,995.00
POD-51XAC3-2M/IE-30 30-MHz pod for the P51XAC3 with 2 MB emulation RAM. The emulation RAM can be configured as half code, half data or all code. 16 bit data bus width mode only. Includes the Seehau Debug Environment $3,495.00
POD-51XA/G3/E1M-16 16-MHz pod board for the P51XAG3 with 1 MB emulation RAM. The emulation RAM can be configured as half code, half data or all code. This pod supports both 8 and 16 bit data bus width. This pod supports 3.3V and 5V Vcc. A separate 44-pin adapter to connect to the target is required. Includes the Seehau Debug Environment $2,895.00
POD-51XAG3-256/IE-30 30-MHz pod board for the P51XAG3 with 256 KB emulation RAM. The emulation RAM can be configured as half code, half data or all code. This pod supports both 8 and 16 bit data bus width. This pod supports 3.3V and 5V Vcc. Includes the Seehau Debug Environment $2,995.00
POD-51XAG3-1M/IE-30 30-MHz pod board for the P51XAG3 with 1 MB emulation RAM. The emulation RAM can be configured as half code, half data or all code. This pod supports both 8 and 16 bit data bus width. This pod supports 3.3V and 5V Vcc. Includes the Seehau Debug Environment $3,295.00
POD-51XAS3-256/IE-16 .16-MHz pod board for the P51XAS3 with 256K emulation RAM. The emulation RAM can be configured as half code, half data or all code. This pod supports both 8 and 16 bit data bus width. This pod supports 3.3V and 5V Vcc. A separate 68- or 80-pin adapter to connect to the target is required. Includes the Seehau Debug Environment $2,595.00
POD-51XAS3-2M/IE-30 .30-MHz pod board for the P51XAS3 with 2 MB emulation RAM. The emulation RAM can be configured as half code, half data or all code. This pod supports both 8 and 16 bit data bus width. This pod supports 3.3V and 5V Vcc. A separate 68- or 80-pin adapter to connect to the target is required. Includes the Seehau Debug Environment $3,595.00
POD-51XA-SCC-4M 30-MHz pod board for the P51XASCC/H3/H4 with 4-MB emulation RAM. Includes the Seehau Debug Environment $5,995.00

Part Number Optional Real-time triggered Trace History - Add anytime -  Top Price Shopping Cart
EMUL51XA-PC/NIETR-128-16 16 MHz XA Series real time trace. This trace board connects directly to the C3, G3, G49 or S3 pod. It records both the internal and external address and data busses at their full width. It can trigger and filter on both internal and external address and data bus. $2,495.00
EMUL51XA-PC /NIETR128-30 30 MHz XA Series real time trace. This trace board connects directly to the C3, G3, G49 or S3 pod. It records both the internal and external address and data busses at their full width. It can trigger and filter on both internal and external address and data bus. $2,995.00
EMUL51XA-PC/NIETR512-30 30 MHz by 512K frame XA real time trace. The trigger and filter on the external address busses can take place within a 1-MB area. This area is mappable throughout the 16-MB address space in one of sixteen 1-MB blocks. A 1-MB Shadow RAM is also mappable throughout the 16-MB address space in one of sixteen 1-MB blocks. The code coverage feature is also mappable 1 MB in sixteen blocks. $9,595.00




Part Number PC to Pod Interface - Required Back to top Price Shopping Cart
EMUL-PC/EPC Emulator to PC paralell interface communicates with the pod via (LPTx). $995.00
EMUL-PC/USB Emulator to PC USB interface kit. $995.00


Top Shopping home page ICE Technology - Nohau Home Page
Let us help. Call 800.686.6428 - International 650.375.0409
