ST10 Emultor to target site adapters

CPU 3 volt operation adapter 52 Pin adapters 64 Pin adapters 80 Pin adapters 100 Pin adapters 112 Pin adapters 144 Pin adapters Special adapters and extenders



Part Number 3 Volt Operation Adapter    Go to the top of this page Price Shopping Cart
EMUL166-PC/ADP-3V This mezzanine board inserts between the emulator and the target adapter to provide 3-volt target operation.  Supports the C161 and C165, C166 and ST10 3-volt versions.  There are jumpers to allow any parallel port in its entirety to be disconnected from the target. $395.00

Part Number 52 Pin Adapter Replacement Parts    Go to the top of this page Price Shopping Cart
ES/000-2085 Replacement 52-pin solder-down adapter NQ base (NQPACK052SB) Drawing   $100.00
ES/000-2086 Replacement 52-pin solder-down adapter NQ microcontroller cover (HQPACK052SB) Drawing   $90.00
ES/000-2087 Replacement 52-pin solder-down adapter NQ emulator cover (YQPACK052SB) Drawing   $110.00
ES/000-3588 Replacement 52-pin NQ spacer between the solder-down base and the adapter PCB (YQSOCKET052SBF). Used for the ES/000-2085/86/87 Drawing   $175.00

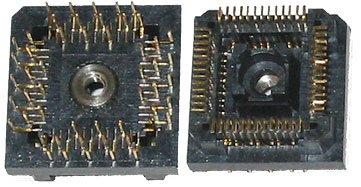

ES/000-4472 Replacement 52-pin solder-down TQ adapter base (TQPACK052SB) Drawing   $185.00

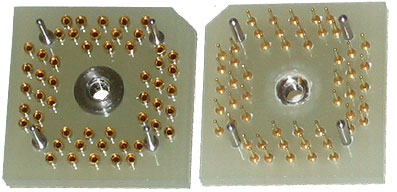

ES/000-2756 Replacement 52-pin TQ spacer between the solder-down base and the adapter PCB (YQSOCKET052SBW) Drawing   $185.00

Part Number 64 Pin Adapter Replacement Parts    Go to the top of this page Price Shopping Cart

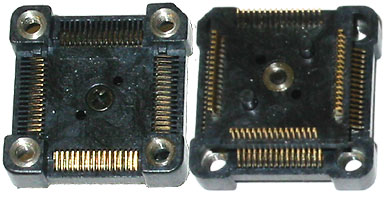

ES/000-2105 Replacement 64-pin solder-down adapter NQ base (NQPACK064SD) Drawing   $229.00

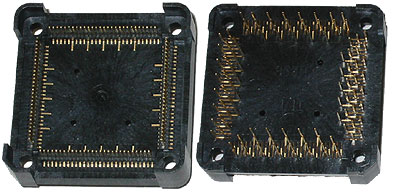

ES/000-2106 Replacement 64-pin solder-down adapter NQ microcontroller cover (HQPACK064SD) Drawing   $219.00

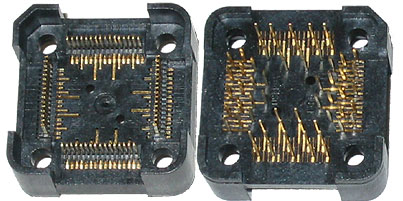

ES/000-2107 Replacement 64-pin solder-down adapter NQ emulator cover (YQPACK064SD) Drawing   $195.00
ES/000-3610 Replacement 64-pin NQ spacer between the solder-down base and the adapter PCB (YQSOCKET064SDF). Used for the above ES/000-2105/06/07 $175.00
ES/000-4492 Replacement 64-pin solder-down TQ adapter base (TQPACK064SD) $195.00
ES/000-2786 Replacement 64-pin TQ spacer between the solder-down base and the adapter PCB (YQSOCKET064SDW) $195.00

Part Number 80 Pin Adapter Replacement Parts    Go to the top of this page Price Shopping Cart

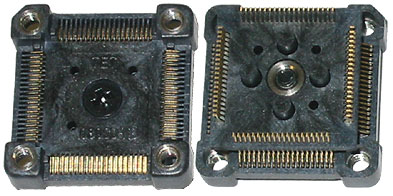

ES/000-2174 Replacement 80-pin solder-down adapter NQ base (NQPACK080SD) Drawing   $130.00
ES/000-2175 Replacement 80-pin solder-down adapter NQ microcontroller cover (HQPACK080SD) Drawing   $219.00
ES/000-2176 Replacement 80-pin solder-down adapter NQ emulator cover (YQPACK052SD) Drawing   $219.00
ES/000-3588 Replacement 80-pin NQ spacer between the solder-down base and the adapter PCB (YQSOCKET052SDF). Used for the ES/000-2174/75/76 Drawing   $195.00
ES/000-2177 Replacement 80-pin solder-down adapter NQ base (NQPACK080SB) Drawing   $195.00
ES/000-2178 Replacement 80-pin solder-down adapter NQ microcontroller cover (HQPACK080SB) Drawing   $219.00
ES/000-2179 Replacement 80-pin solder-down adapter NQ emulator cover (YQPACK080SB) Drawing   $219.00
ES/000-3660 Replacement 80-pin NQ spacer between the solder-down base and the adapter PCB (YQSOCKET080SBF). Used for the ES/000-2177/78/79 Drawing   $175.00
ES/000-4534 Replacement 80-pin solder-down TQ adapter base (TQPACK080SB) Drawing   $195.00
ES/000-2870 Replacement 80-pin TQ spacer between the solder-down base and the adapter PCB (TQSOCKET080SBW). Used for the ES/000-4534 adapter Drawing   $195.00
EMUL-12D/ADP112P/80P-D60 This is a converter adapter made by Motorola, part # SC1200027-N. This adapter is used to convert a 112-pin adapter to an 80-pin package for the D60, DA128, DA128A, DG128, or DG128A emulator. This adapter is used with the ES/000-2177/78/79 (NQ) adapter or the ES/000-4534 (TQ) adapter $449.00

Part Number 100 Pin Adapters    Go to the top of this page Price Shopping Cart
ET/EPP-100-QF49-SM Additional solder down SMD base, 100 pin QFP, 0.5mm pitch, used for ET/R163/C165-QF49S-NOH. Drawing   $365.00

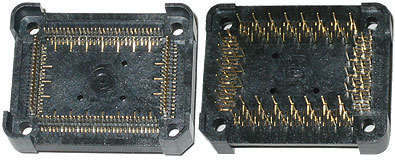

ES/000-2235 Surface mount base, 0.65mm pitch, 100 pin rectangle. (YQPACK100RB) Drawing   $150.00

Part Number 112 Pin Adapters    Go to the top of this page Price Shopping Cart

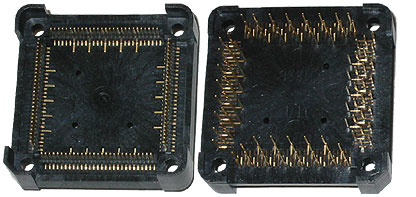

ES/000-2242 Replacement 112-pin NQ microcontroller cover (YQPACK112SB) Drawing   $150.00

Part Number 144 Pin Adapters    Go to the top of this page Price Shopping Cart
EMUL166-PC/ADP-PGA144 In-circuit pod PGA male to PQFP socket adapter. The base solders down into 144 pin QFP AMP production socket footprint. $195.00
EMUL166-PC/ADP-144PIN-DELTA Clip over Delta Probe for the Infineon C167 and ST Microelectronics ST10 144 pin microcontrollers such as C167 CR and ST10-F168. $1,100.00
8800-0087 Delta Probe is an accurate mechanically non-invasive way to make contact with 0.65mm pitch 144 pin PQFP surface mount components Data Sheet   $139.00
EMUL166-PC/Extender-144 144 Pin extender adapter for direct connection betwee the unit under test and emulator in-circuit pod headers. Provides .5 inch lift from the board. $110.00
ET/AS-C167-QF10S-NOH 144 pin QFP adapter kit for the square C167. The bottom portion solders to the user board. Additional surface mount base is available, part number ET/EPP-100-QF49-SM. $895.00
ET/AS-C167-QF10S-YAM-NOH 144 pin QFP adapter kit for the Yamaichi square C167 chip carrier. The bottom of the adapter bolts to the top of the surface mount Yamaichi chip carrier. $750.00

Part Number Special Adapters for Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart
EMUL/ADP/FLEX-ST10/166-RB Set of two rotational boards to use with the flex cable to extend the adapter away from the emulator. One of the boards fits between the pod and flex cable, and the other board fits between the flex cable and the target adapter. Rotational boards for other microcontroller families are available through Nohau. Mechanical specifications are available for the custom rotational boards $195.00
ISO166/ST10-EXT Isolator/extender kit for ST10 and 166 pods. Adds about 2 inches of clearance between pod and target and has jumpers allowing individual isolation of each pin to the target. $349.00
