    Part Number 48 Pin Adapter Replacement Parts   Go to the top of this pagePrice Shopping Cart

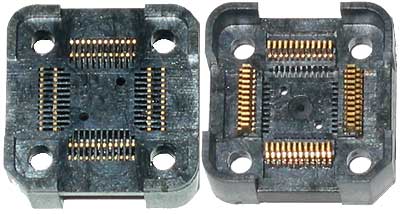

    ES/000-2076 48-pin NQFP microcontroller cover (HQPACK048SD). Drawing   $79.00

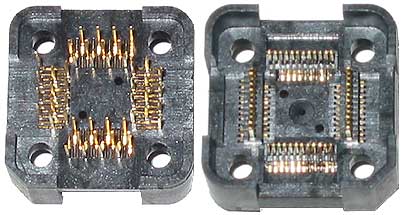

    ES/000-2077 48 Pin NQFP emulator cover (YQPACK048SD). Drawing   $95.00

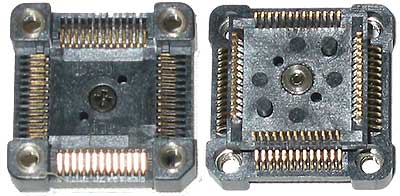

    ES/000-2085 48 Pin NQFP surface moiunt adapter base (NQPACK048SD).000-2085 Drawing   $89.00
    ES/000-4468 48 Pin TQFP surface moiunt adapter base (NQPACK048SD).000-2085 Drawing   $89.00
    EMUL/ADP/BOT-PCB/QFP48-050 MC9S12C bottom end rotational board. The bottom target end rotational board for the QFP 48-pin 0.50mm pitch adapters. Used to support the S12C family. This board plugs into a QFP 48-pin 0.50mm pitch Tokyo Eletech surface mount TQ or NQ base. $220.00

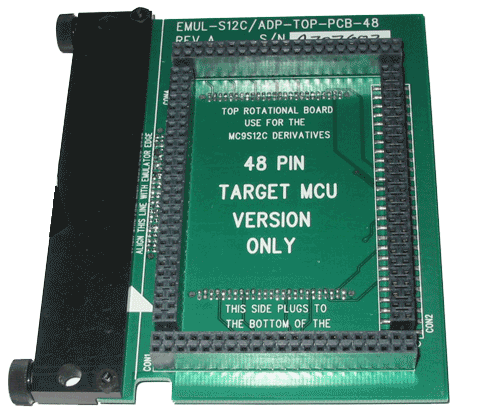

    EMUL-S12C/ADP-TOP-PCB-48 MC9S12C top end rotational board $220.00

    Part Number 52 Pin Adapter Replacement Parts   Go to the top of this page Price Shopping Cart
    ES/000-2085 52-pin NQ surface mount base NQPACK052SB. 000-2085 Drawing   $85.00

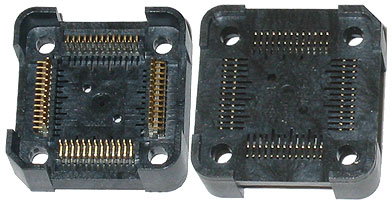

    ES/000-2086 52 Pin NQ microcontroller cover HQPACK052SB Drawing   $70.00

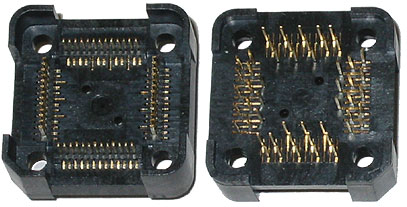

    ES/000-2087 52 Pin NQ emulator cover YQPACK052SB Drawing   $100.00

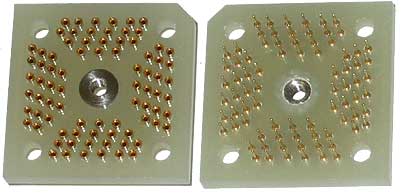

    ES/000-3588 52 pin NQ spacer between the surface mount base and the adapter. Drawing   $65.00
    ES/000-4472 52 pin TQ spacer between the surface mount base and the adapter PCB ES/000-4472 (TQPACK052SB) Drawing   $75.00

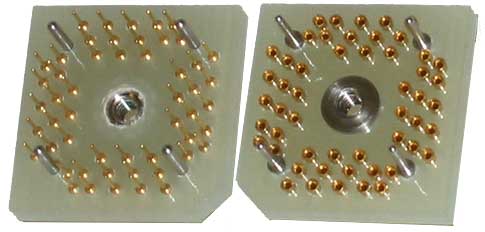

    ES/000-2756 52-pin TQ spacer between the solder-down base and the adapter PCB (YQSOCKET052SBW) Drawing   $78.00

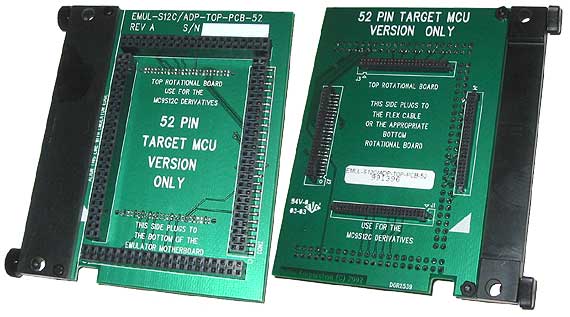

    EMUL-S12XF/ADP-TOP-PCB-52 The top emulator end rotational board for the 52-pin adapters used for the MC9S12C. This board connects to the bottom of the EMUL-S12 emulator. The four headers on the bottom plug into either the 52-pin bottom rotational board (EMUL/ADP/BOT-PCB/QFP52-065) to form an adapter, or it can be used with the flex cable (EMUL/ADP/FLEX-CABLE/MALE-FEMALE) to extend the emulator away from the target. $220.00

    Part Number 64 Pin Adapter Replacement Parts   Go to the top of this pagePrice Shopping Cart

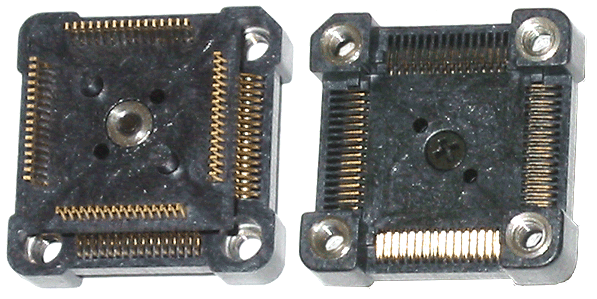

    ES/000-2105 64 Pin square QFP, 0.50mm surface mount adapter base. 000-2105 NQPACK64SD Drawing   $95.00
    ES/000-2106 Replacement 64 pin surface mount adapter NQ microcontroller cover (HQPACK064SD) Drawing   $80.00
    ES/000-2107 Replacement 64 pin surface mount adapter NQ emulator cover (YQPACK064SD) Drawing   $115.00
    ES/000-2786 Replacement 64 pin TQ spacer between the surface mount base and the adapter PCB (YQSOCKET064SDW) Drawing   $75.00
    ES/000-3610 Replacement 64 pin NQ spacer between the surface mount base and the adapter PCB (YQSOCKET064SDF). Used for the above ES/000-2105 $68.00
    ES/000-4492 Replacement 64 pin surface mount TQ adapter base (TQPACK064SD) Drawing   $90.00
    EMUL/ADP/BOT-PCB/QFP64-050 Bottom target end rotational board for the QFP 64-pin 0.50mm pitch adapters. This board plugs into a QFP 64-pin 0.50mm pitch Tokyo Eletech solder-down TQ or NQ base. The four headers on the top plug into either the 64-pin top rotational board (EMUL-S12XF/ADP-TOP-PCB-64) to form an adapter, or it can be used with the flex cable (EMUL/ADP/FLEX-CABLE/MALE-FEMALE) $220.00
    EMUL-S12XF/ADP-TOP-PCB-64 Top emulator end rotational board for 64-pin adapters. This board connects to the bottom of the emulator. The four headers on the bottom plug into either the 64-pin bottom rotational board (EMUL/ADP/BOT-PCB/QFP64-050) or with the flex cable (EMUL/ADP/FLEX-CABLE/MALE-FEMALE) $220.00

    Part Number 80 Pin Adapter Replacement Parts   Go to the top of this pagePrice Shopping Cart

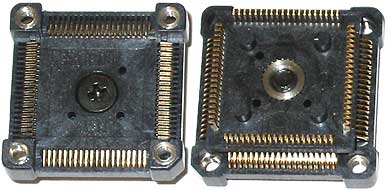

    ES/000-2177 Replacement 80 pin surface mount adapter NQ base (NQPACK080SB) Drawing   $100.00

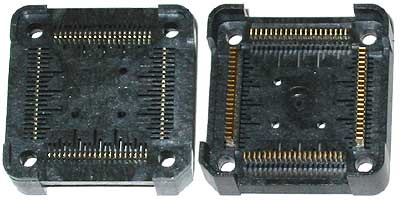

    ES/000-2178 Replacement 80 pin surface mount adapter NQ microcontroller cover (HQPACK080SB) Drawing   $85.00

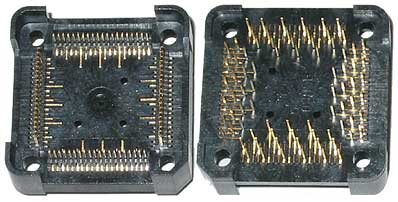

    ES/000-2179 Replacement 80 pin solder-down adapter NQ emulator cover (YQPACK080SB). Drawing   $130.00

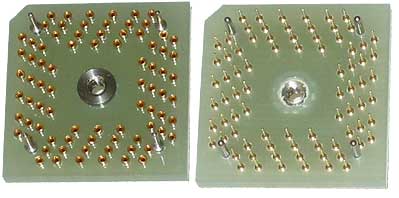

    ES/000-2870 Replacement 80 pin TQ spacer between the surface mount base and the adapter PCB with 0.39mm guide fastener. (TQSOCKET080SBW). Used for the ES/000-4534 adapter Drawing   $85.00
    ES/000-3660 Replacement 80 pin NQ spacer between the surface mount base and the adapter PCB (YQSOCKET080SBF). Used for the ES/000-2177/78/79 $78.00
    ES/000-4534 Replacement 80 pin .65mm surface mount TQ adapter base (TQPACK080SB) Drawing   $100.00
    ES/110-7400-15 Emulator conversion adapter, 80 pin, .65mm pitch. This adapter plugs into/covers a Yamaichi 80 pin socket part # IC149-080-117/017-B5/S5 80 pin, 0.65mm pitch TQ and NQ male pin patterns (000-4532 = TQ/000-2177-00 = NQ). $405.00

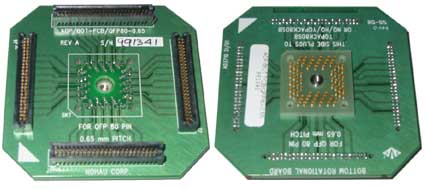

    ADP/BOT-PCB-QFP80-065 Emulator end bottom end rotational board for 80-pin adapters. $220.00
    EMUL-S12D/ADP-TOP-PCB-80 The top emulator end rotational board for the 80-pin adapters used for the MC9S12DP256, Axxx, Bxxx, Dxxxx and Kxxxx. This board connects to the bottom of the EMUL-S12 or EMUL-S12D emulator. The four headers on the bottom plug into either the 80-pin bottom rotational board (EMUL/ADP/BOT-PCB/QFP80-065) to form an adapter, or it can be used with the flex cable (EMUL/ADP/FLEX-CABLE/MALE-FEMALE) to extend the emulator away from the target. $220.00

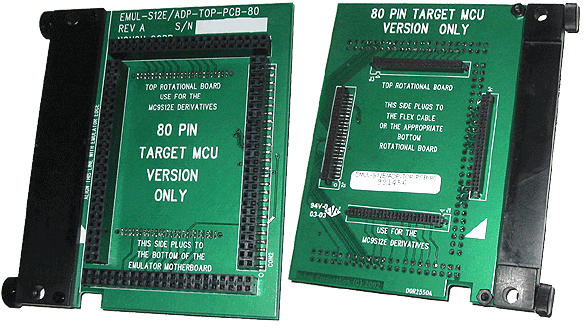

    EMUL-S12E/ADP-TOP-PCB-80 The top emulator end rotational board for the 80-pin adapters used for the MC9S12E128. This board connects to the bottom of the EMUL-S12 emulator. The four headers on the bottom plug into either the 80-pin bottom rotational board (EMUL/ADP/BOT-PCB/QFP80-065) to form an adapter, or it can be used with the flex cable (EMUL/ADP/FLEX-CABLE/MALE-FEMALE) to extend the emulator away from the target. $220.00
    EMUL-S12XF/ADP-TOP-PCB-80 The top emulator end rotational board for the 80 pin targets. This board connects to the bottom of the EMUL-S12 emulator. The four headers on the bottom plug into either the 80 pin bottom rotational board to form an adapter, or it can be used with the flex cable (EMUL/ADP/ FLEX-CABLE/MALE-FEMALE) to extend the emulator away from the target. $220.00

    Part Number 112 Pin Adapter Replacement Parts   Go to the top of this pagePrice Shopping Cart

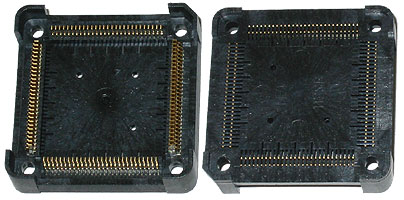

    ES/000-2240 MC9S12 & MC9S12X 112 Pin NQFP replacement base. Drawing   $126.00
    ES/000-2241 Replacement 112 pin NQ microcontroller cover (HQPACK112SB) Drawing   $110.00

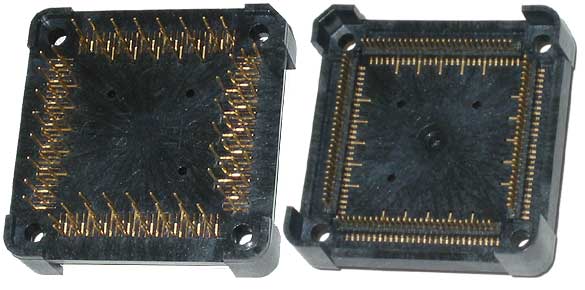

    ES/000-2242 Replacement 112 pin NQ emulator cover (YQPACK112SB) Drawing   $135.00

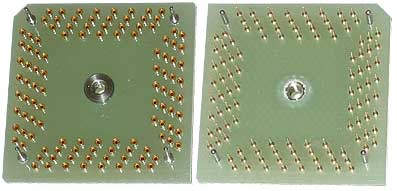

    ES/000-2970 TQ 112 Pin, square, 0.65mm pitch, with long guide fastener replacement spacer. For 68HCS12H256, H128, H64 Drawing   $85.00

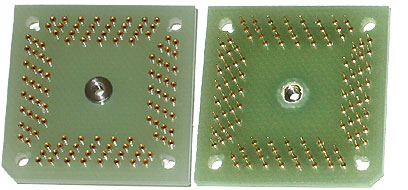

    ES/000-3720 Replacement 112 pin NQ spacer. (YQSOCKET112SBF) Used for the ES/000-2240/41/42 adapter. Drawing   $95.00

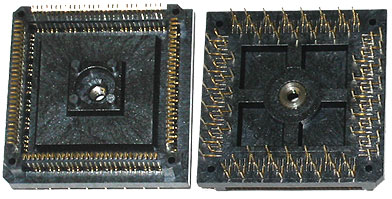

    ES/000-4584 TQ 112 Pin replacement adapter TQPACK112SB Drawing   $189.00

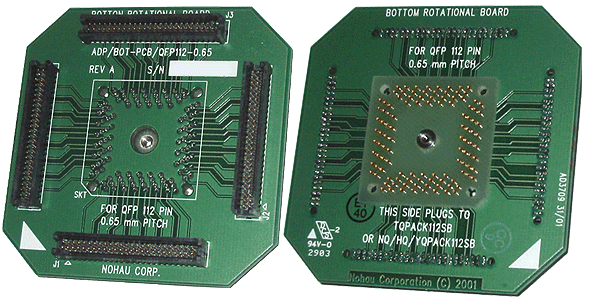

    ADP/BOT-PCB/QF112-065 Flex cable rotational bottom to the 112-pin, 0.65mm surface mount adapter. $220.00
    EMUL-S12D/ADP-112P/80P-DP60 Adapter from 112 pins to 80-pin for MCS698HC912 DP256. $350.00

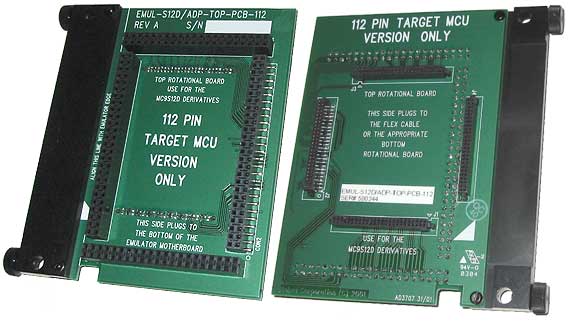

    EMUL-S12D/ADP-TOP-PCB-112 Top emulator end rotational board for the EMUL-S12 or EMUL-S12D emulator and 112-pin adapters used for the for the MC9S12DP256, Axxx, Bxxx, Dxxxx and Kxxxx series processors. $220.00

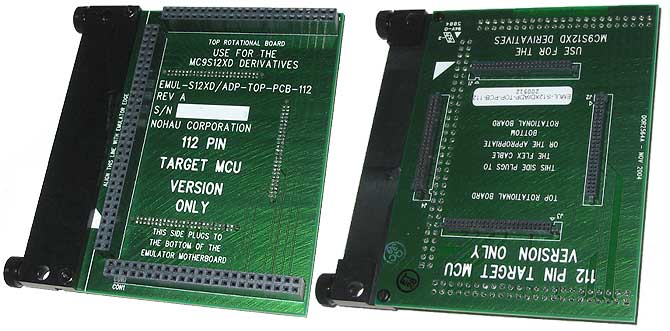

    EMUL-S12XD/ADP-TOP-PCB-112 Top emulator end rotational board for the 112-pin adapters used for the S12XD and S12XE families. This board connects to the bottom of the EMUL-S12X emulator. $220.00
    EMUL-S12XF/ADP-TOP-PCB-112 Top emulator end rotational board for the 112-pin adapters used for the S12XF sereis processors. This board connects to the bottom of the EMUL-S12X emulator. $220.00


    Part Number 144 Pin Adapter Replacement Parts   Go to the top of this pagePrice Shopping Cart
    ES/000-2303 (NQPACK144SD) Replacement 144 pin NQFP surface mount, 0.05mm pitch adapter base Drawing   $162.00
    ES/000-2304 (HQPACK144SD) Replacement 144 pin NQFP microcontroller cover Drawing   $140.00
    ES/000-2305 (YQPACK144SD) Replacement 144 pin NQFP emulator cover Drawing   $185.00

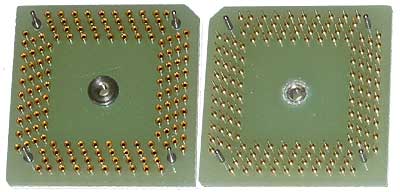

    ES/000-3065 144 Pin, TQ, square, 0.50mm pitch, with guide fastener replacement spacer. Drawing   $115.00
    ES/000-3776 (YQPACK144SD) Replacement square 144-pin NQ spacer (YQSOCKET144SDF). Used for the ES/000-2303/4/5 adapters. Drawing   $110.00

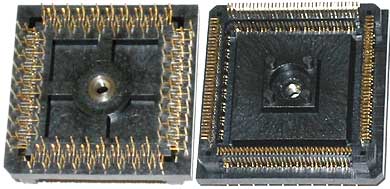

    ES/000-4632 144 Pin, TQ, 0.50mm pitch replacement base TQPACK144SD Drawing   $155.00

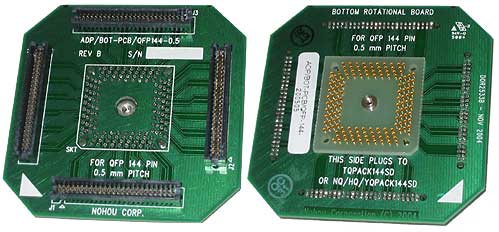

    ADP/BOT-PCB-QFP144-050 Flex cable rotational bottom to the 144-pin, 0.5mm surface mount adapter. $220.00

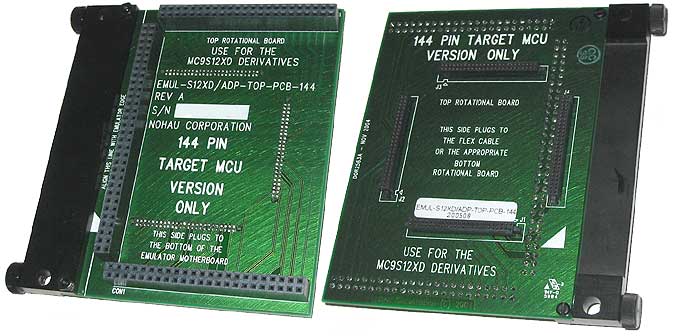

    EMUL-S12XD/ADP-TOP-PCB-144 Top emulator end rotational board for the 144-pin adapters used for the S12X series emulators. $220.00
    ADP/BOT-PCB-QFP144-050 Flex cable rotational bottom to the 144-pin, 0.5mm surface mount adapter. $220.00
    EMUL-S12XF/ADP-TOP-PCB-144 Top emulator end rotational board for the 144-pin adapters used for the S12X series emulators. $220.00

    Part Number Adapter Replacement Parts   Go to the top of this pagePrice Shopping Cart

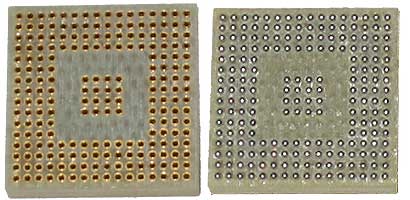

    ES/000-4078-01 208 Pin 1mm ball grid array SMT base. Drawing   $165.00

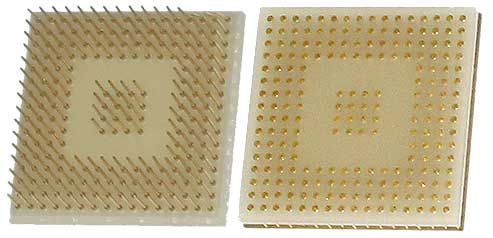

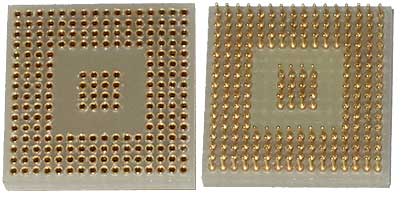

    ES/030-1127 208 Pin spacer to SMT base $165.00
    ES/140-1127-00 208 Pin BGA IC adapter to mount a BGA microcontroller on, and then plug into the 208-pin BGA solder-down base. $125.00
    ADP/BOT-PCB/S12XE-BGA208-1MM Bottom target end rotational board for the S12XE BGA 208-pin 1mm pitch adapter. This board plugs into a 208-pin BGA spacer and the BGA solder-down base, part # ES/030-1127-00 (spacer) ES/000-4078 base. $265.00
    EMUL-S12XE/ADP-TOP-PCB-208 208 Pin top emulator end rotational board used for the S12XE series adapters. $235.00

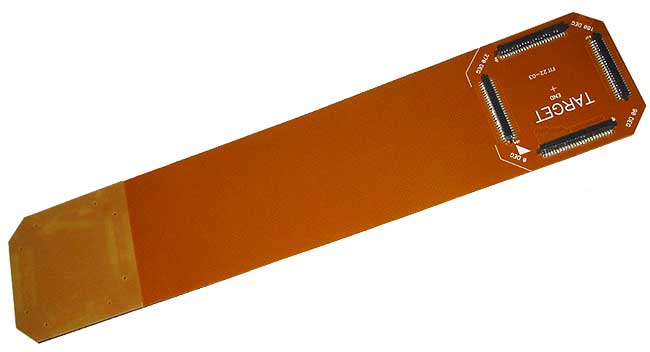

    ADP/FLEX-CABLE/MALE-FEMALE Emulator flexible extension cable for all the to escape from the target at 0°, 90°, 180° or 270° Works with top and bottom rotational boards. $1,995.00
