68HC11 Series In-circuit Emulators


68HC11 Emulator

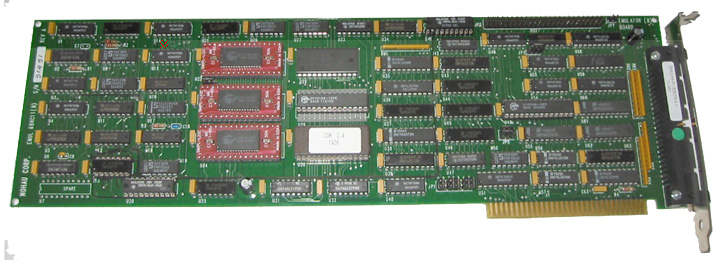

68HC11 Emulator cards 68HC11 In-circuit emulator pods 68HC11 Real-time code execution triggered trace memory 68HC11 emulator pod to CPU circuit card site adapter Emulator chassis with PC parallel port I/O

Select an emulator card, in-circuit pod, and chassis with or without the optional trace card to configure your emulator.
Or, we would be happy to configure an emulator for your project.  Email your target processor part number & clock speed

ICE Technology shopping home page ICE Technology web site Complete 68HC11 emulator system technical description and parts list. Email ICE Technology FAE Complete 68HC11 emulator system technical description and parts list.

Part Number Emulator Card - Required - Top Price Shopping Cart

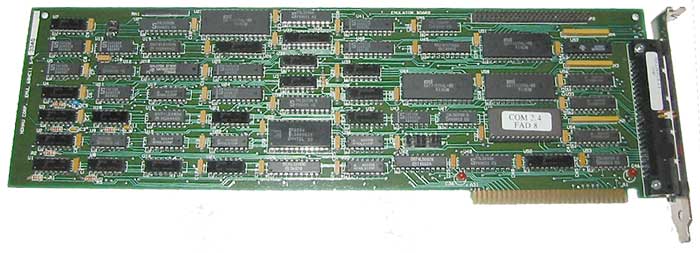

EMUL68-PC/E-3.3 Emulator Card - 64K Emulation memory to be used for code or data. Operates at E-clock speeds up to 3.3 MHz. Includes the Seehau Debug Environment $1,495.00
EMUL68-PC/EB1M-4.0 Emulator Card - 1MB Bank switching emulator operates at E-clock speeds up to 4.0 MHz. It has 1M of emulation memory to be used for code or data. Includes the Seehau Debug Environment $5,995.00


Part Number Optional Real-time Triggered Trace History - Add anytime -  Top Price Shopping Cart

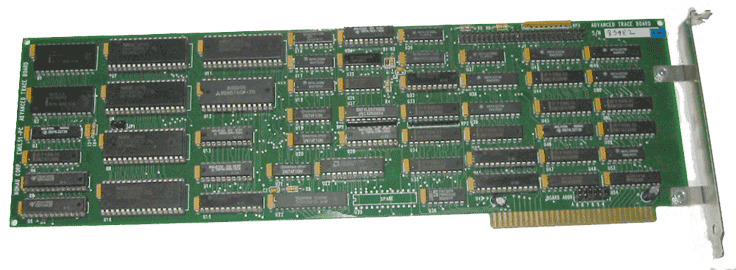

EMUL68-PC/TR4-2.1 2.1- MHz maximum E-Clock, 4-kiloframe, 2 level trigger, real-time The trace buffer shows history of execution. There are two condition registers for triggering or filtering on address or data values, cycle type or external inputs. There is also time stamping with prescaler, loop event counter and program performance analysis. $995.00
EMUL68-PC/TR4-3.3 3.3- MHz maximum E-Clock, 4-kiloframe, 2 level trigger, real-time The trace buffer shows history of execution. There are two condition registers for triggering or filtering on address or data values, cycle type or external inputs. There is also time stamping with prescaler, loop event counter and program performance analysis. $1,195.00
EMUL68-PC/TR16-2.1 2.1- MHz maximum E-Clock, 16-kiloframe, 2 level trigger, real-time The trace buffer shows history of execution. There are two condition registers for triggering or filtering on address or data values, cycle type or external inputs. There is also time stamping with prescaler, loop event counter and program performance analysis. $2,235.00
EMUL68-PC/TR16-3.3 3.3- MHz maximum E-Clock, 16-kiloframe, 2 level trigger, real-time The trace buffer shows history of execution. There are two condition registers for triggering or filtering on address or data values, cycle type or external inputs. There is also time stamping with prescaler, loop event counter and program performance analysis. $2,435.00
EMUL68-PC/TR16-4.0 4.0- MHz maximum E-Clock, 16-kiloframe, 2 level trigger, real-time The trace buffer shows history of execution. There are two condition registers for triggering or filtering on address or data values, cycle type or external inputs. There is also time stamping with prescaler, loop event counter and program performance analysis. $2,895.00

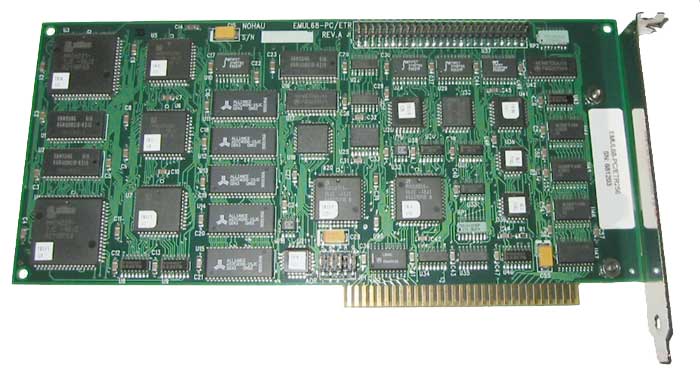

EMUL68-PC/ETR256-2.1 2.1 MHz maximum E-Clock Real-time trace, 256K-Frame FIFO record. There are up to 8 levels of trigger registers for triggering or filtering on address or data values, cycle type or external inputs. There is also a loop event counter and program performance analysis, plus 32-bit time stamping with 16-bit prescaler, state and counter functions, filter delay, search, Shadow RAM for real-time variable display in binary to graphic format, 1MB Code Coverage memory. $2,995.00
EMUL68-PC/ETR256-4.0 4.0 MHz maximum E-Clock Real-time trace, 256K-Frame FIFO record. There are up to 8 levels of trigger registers for triggering or filtering on address or data values, cycle type or external inputs. There is also a loop event counter and program performance analysis, plus 32-bit time stamping with 16-bit prescaler, state and counter functions, filter delay, search, Shadow RAM for real-time variable display in binary to graphic format, 1MB Code Coverage memory. $3,995.00


Part Number In-Circuit Emulator Pod - Required Top Price Shopping Cart
POD-11CE-3.0 68HC11C 3.0- MHz maximum E-Clock in-circuit pod for expanded mode only. $295.00
POD-11DE-PGA-2.1 68HC11D 2.1- MHz maximum E-Clock in-circuit pod for expanded mode only. 44-pin PGA from pod. Supports 68HC11D0, 68HC11ED0, 68HC11D3 and 68HC11711D3 $695.00
POD-11DS-PGA-2.1 68HC11D 2.1- MHz maximum E-Clock in-circuit pod for single chip mode only. 44-pin PGA from pod. Supports 68HC11D0, 68HC11ED0, 68HC11D3 and 68HC11711D3 $395.00
POD-11DS-PGA-3.0 68HC11D 3.0- MHz maximum E-Clock in-circuit pod for single chip mode only. 44-pin PGA from pod. Supports 68HC11D0, 68HC11ED0, 68HC11D3 and 68HC11711D3 $995.00
POD-11DE-PGA-3.0 68HC11D 3.0 - MHz maximum E-Clock in-circuit pod for expanded mode only. 44-pin PGA from pod. Supports 68HC11D0, 68HC11ED0, 68HC11D3 and 68HC11711D3 $895.00
POD-11E-DIP-2.1 2.1- MHz maximum E-Clock in-circuit pod for expanded mode only. DIP connection. Supports 68HC11A0, 68HC11A1, 68HC11A7, 68HC11A8, 68HC11E0, 68HC11E1, 68HC811E2, 68HC11E8, 68HC11E9, 68HC711E9, 68HC11E20 and 68HC711E20 $595.00
POD-11E-DIP-3.0 3.0 MHz maximum E-Clock in-circuit pod for expanded mode only. 48 Pin DIP connection. Supports 68HC11A0, 68HC11A1, 68HC11A7, 68HC11A8, 68HC11E0, 68HC11E1, 68HC811E2, 68HC11E8, 68HC11E9, 68HC711E9, 68HC11E20 and 68HC711E20 $795.00
POD-11E-PLCC-2.1 2.1- MHz maximum E-Clock in-circuit pod for expanded mode only. 52-pin PLCC connection. Supports 68HC11A0, 68HC11A1, 68HC11A7, 68HC11A8, 68HC11E0, 68HC11E1, 68HC811E2, 68HC11E8, 68HC11E9, 68HC711E9, 68HC11E20 and 68HC711E20 $595.00
POD-11E-PLCC-3.0 3.0- MHz maximum E-Clock in-circuit pod for expanded mode only. 52-pin PLCC connection. Supports 68HC11A0, 68HC11A1, 68HC11A7, 68HC11A8, 68HC11E0, 68HC11E1, 68HC811E2, 68HC11E8, 68HC11E9, 68HC711E9, 68HC11E20 and 68HC711E20 $795.00
POD-11FE-PGA-2.1 For 68HC11F to 2.1- MHz maximum E-Clock in-circuit pod for expanded mode only. 68-pin PGA connection $795.00
POD-11FE-PGA-4.0 For 68HC11F to 4.0- MHz maximum E-Clock in-circuit pod for expanded mode only. 68-pin PGA connection $1,095.00
POD-11FL0-4.0 In-Circuit pod supports the 68HC11FL0 to 4.0- MHz maximum E-Clock. $1,295.00
POD-11KE-PGA-3.0 To 3.0- MHz maximum E-Clock in-circuit pod for expanded mode only. Supports 68HC11K0, 68HC11K1, 68HC11K3, 68HC11K4 and 68HC11711K4. $295.00
POD-11KE-PGA-4.0 To 4.0- MHz maximum E-Clock in-circuit pod for expanded mode only. Supports 68HC11K0, 68HC11K1, 68HC11K3, 68HC11K4 and 68HC11711K4. $1,295.00

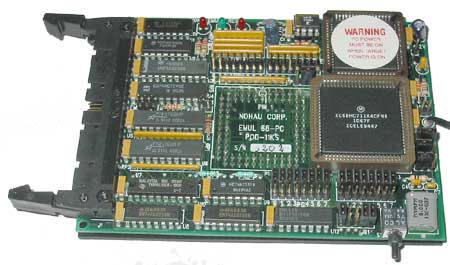

POD-11KS-PGA-3.0 To 3.0- MHz maximum E-Clock in-circuit pod for single-chip mode only. Supports 68HC11K0, 68HC11K1, 68HC11K3, 68HC11K4 and 68HC11711K4. $295.00
POD-11KS-PGA-4.0 To 4.0- MHz maximum E-Clock in-circuit pod for single-chip mode only. Supports 68HC11K0, 68HC11K1, 68HC11K3, 68HC11K4 and 68HC11711K4 $1,295.00
POD-11LE-PGA-2.1 68HC711L 2.1- MHz maximum E-Clock in-circuit pod for expanded memory mode only. $595.00

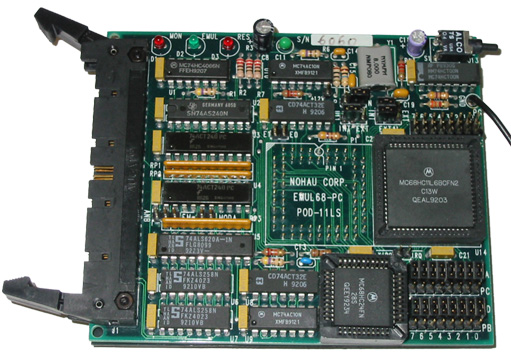

POD-11LS-PGA-2.1 68HC711L 2.1- MHz maximum E-Clock in-circuit pod for single-chip mode only. $595.00
POD-11LS-PGA-3.0 68HC711L 3.0- MHz maximum E-Clock in-circuit pod for single-chip mode only. $695.00
POD-11LS-PGA-4.0 68HC711L 4.0- MHz maximum E-Clock in-circuit pod for single-chip mode only. $895.00

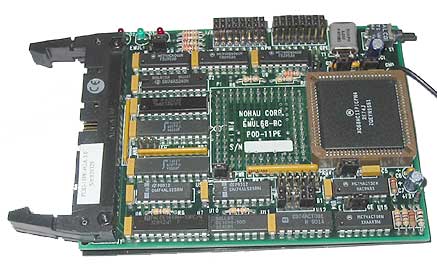

POD-11PE-PGA-3.0 To 3.0- MHz maximum E-Clock in-circuit pod for expanded mode only. Suports 68HC11P1, 68HC11P2, 68HC11711P2, 68HC11PH8 and 68HC711PH8 $995.00
POD-11PE-PGA-4.0 To 3.0- MHz maximum E-Clock in-circuit pod for expanded mode only. Suports 68HC11P1, 68HC11P2, 68HC11711P2, 68HC11PH8 and 68HC711PH8 $1,295.00
POD-11PS-PGA-3.0 To 3.0-MHz pod in single-chip mode in-circuit pod. Suports 68HC11P1, 68HC11P2, 68HC11711P2, 68HC11PH8 and 68HC711PH8 $895.00
POD-11PS-PGA-4.0 To 4.0-MHz pod in single-chip mode in-circuit pod. Suports 68HC11P1, 68HC11P2, 68HC11711P2, 68HC11PH8 and 68HC711PH8 $1,495.00
POD-11S-DIP-2.1 A 2.1-MHz pod including a 48-pin DIP adapter for single-chip mode. Supports 68HC11A0, 68HC11A1, 68HC11A7, 68HC11A8, 68HC11E0, 68HC11E1, 68HC811E2, 68HC11E8, 68HC11E9, 68HC711E9, 68HC11E20 and 68HC711E20 $695.00
POD-11S-DIP-3.0 A 3.0-MHz pod including a 48-pin DIP adapter for single-chip mode. Supports 68HC11A0, 68HC11A1, 68HC11A7, 68HC11A8, 68HC11E0, 68HC11E1, 68HC811E2, 68HC11E8, 68HC11E9, 68HC711E9, 68HC11E20 and 68HC711E20 $895.00
POD-11S-PLCC-2.1 68HC11A and E series 2.1- MHz maximum E-Clock in-circuit pod for single chip mode only. Supports 68HC11A0, 68HC11A1, 68HC11A7, 68HC11A8, 68HC11E0, 68HC11E1, 68HC811E2, 68HC11E8, 68HC11E9, 68HC711E9, 68HC11E20 and 68HC711E20 The 68HC11A1 PLCC chip is in a socket. The optional ZIF programming adapter, EMUL68-PC/PLCC52ZIF-PLCC52, is recommended for easy removal when frequently programming '711E9 PLCC parts in the pod. $695.00
POD-11S-PLCC-3.0 68HC11 A and E series 3.0- MHz maximum E-Clock in-circuit pod for single chip mode only. The 68HC11A1 PLCC chip on this pod is in a socket. The optional ZIF programming adapter, EMUL68-PC/PLCC52ZIF-PLCC52, is recommended for easy removal when frequently programming '711E9 PLCC parts in the pod. $895.00


Part Number In-Circuit Emulator Chassis - Required Top Price Shopping Cart

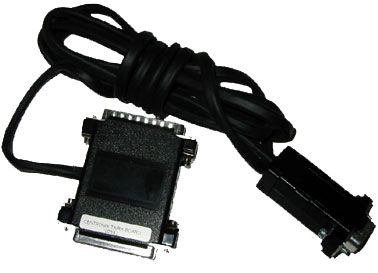

EMUL-PC/BOX-HSP Emulator chassis with parallel port I/O & parallel PC cable $855.00

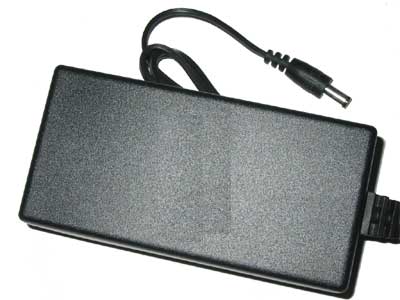

PS-6A Spare emulator chassis power supply $95.00
HSP-CABLE Spare emulator chassis active parallel interface $95.00
